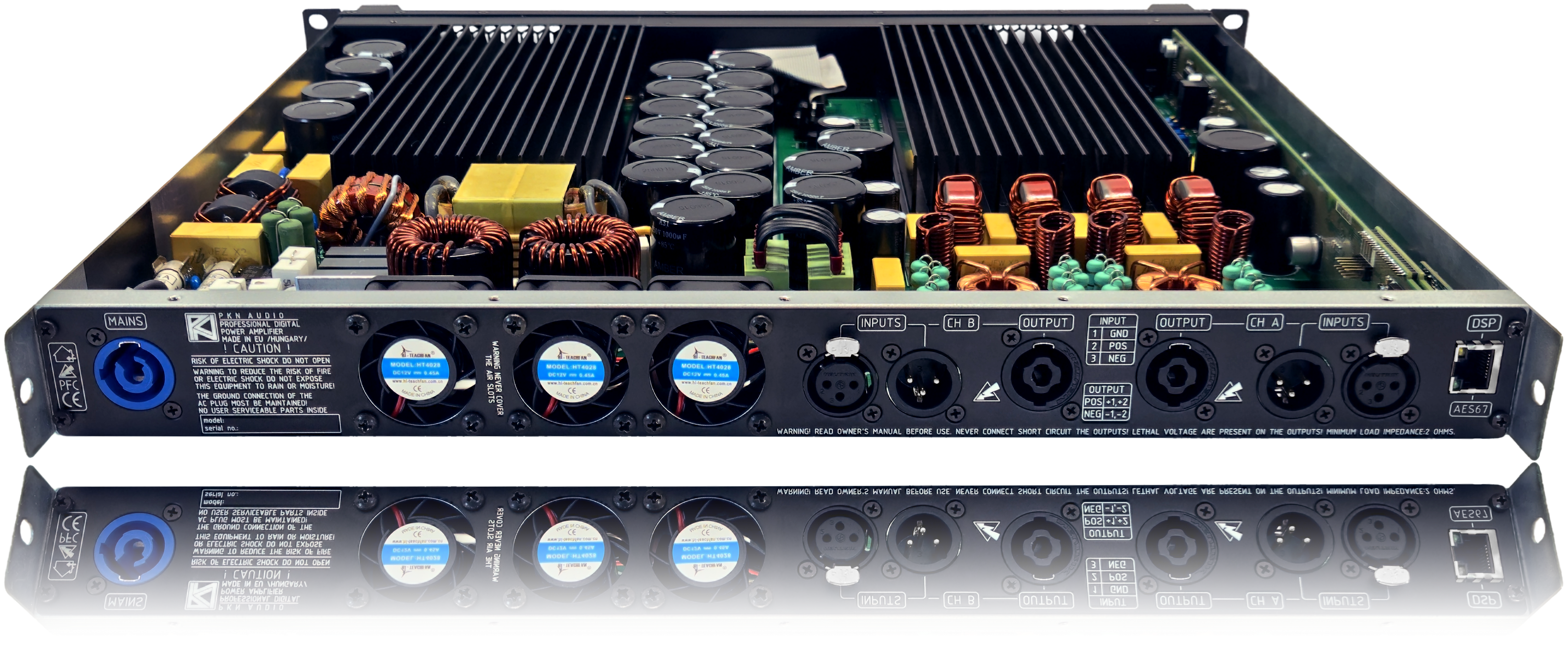

XE DSP Series Two Channel Professional Power Amplifiers


Description

XE DSP Series professional amplifiers are designed for portable and fixed installations. Five models are available. Our newly developed Digital Signal Processing allows wide range of signal manipulation features, like filters (Bessel, BW, FIR) parametric EQ, delays, flexible matrtrix of signal routing. Top quality AD and DA interfacing assuring perfect signal integrity and high definition sound quality. Several sample rates are supported up to 96KS/s at 32bits resolution. Carefully designed analog domain frontends with latest converter technology are responsible for good signal integrity.

Main Features

- High output power and high efficiency
- Advanced high frequency switching technology
- Small size, low weight, ideal for touring applications
- Advanced Digital Processing Features
- Networking audio stream receiving capabilities, AES67

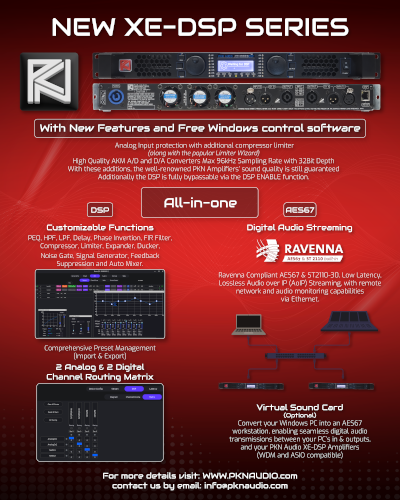

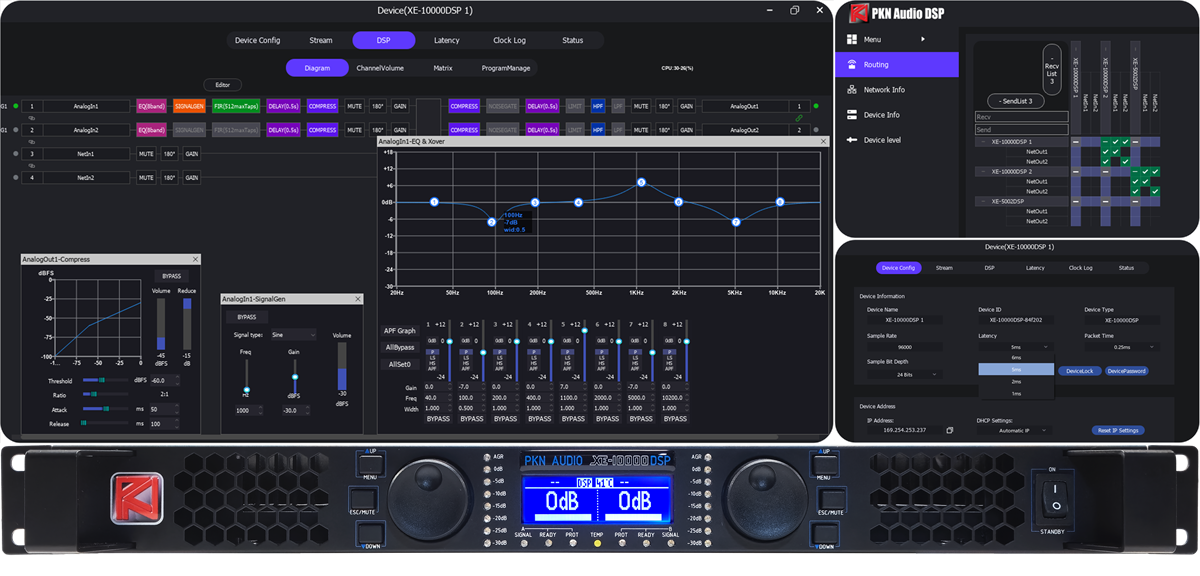

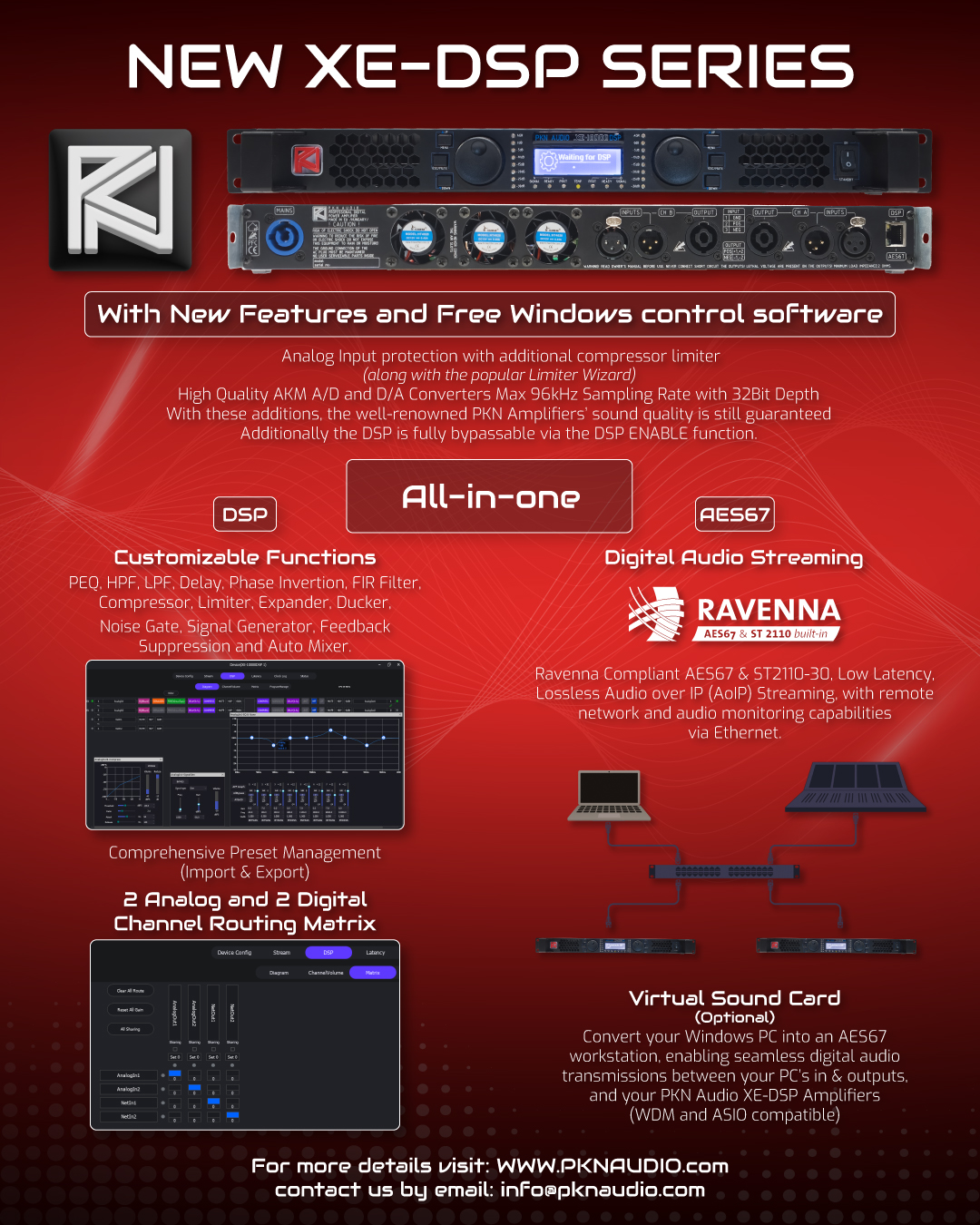

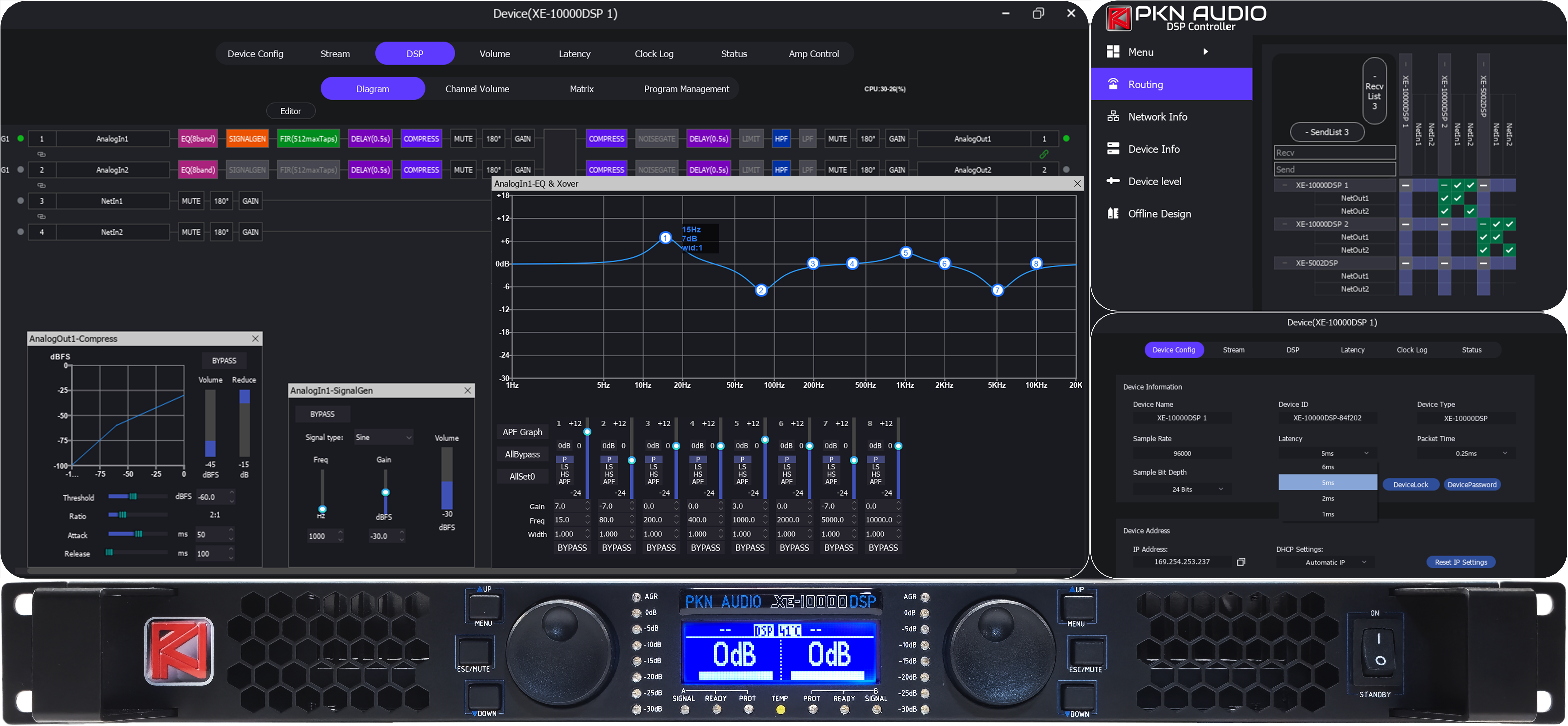

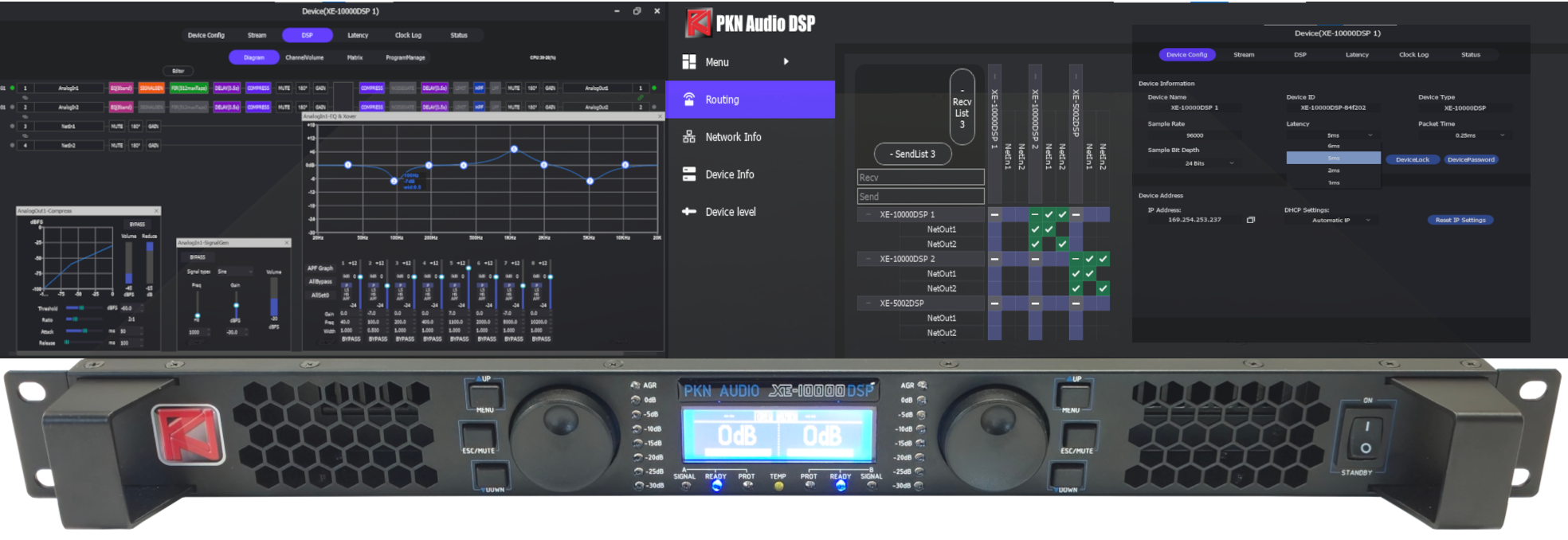

- PKN Audio DSP Controller program for easy system set-up
- Graphics LCD for easy setup and diagnostics
- Two JOG button for fast navigating
- Digital volume and input sensitivity control
- Built-in programmable limiter
- Output Peak and average Voltage,Current measuring
- Displays actual load impedance
- Analog inputs dynamics handling improved separated limiters
- Five user profiles
- Intelligent protective functions
- High frequency resonanat power supply with active PFC function
- Wide mains voltage operation range


 Downloads

User Manual

DSP Software Manual

DSP Controller Software

Mechanical DXF

High Resolution Pictures

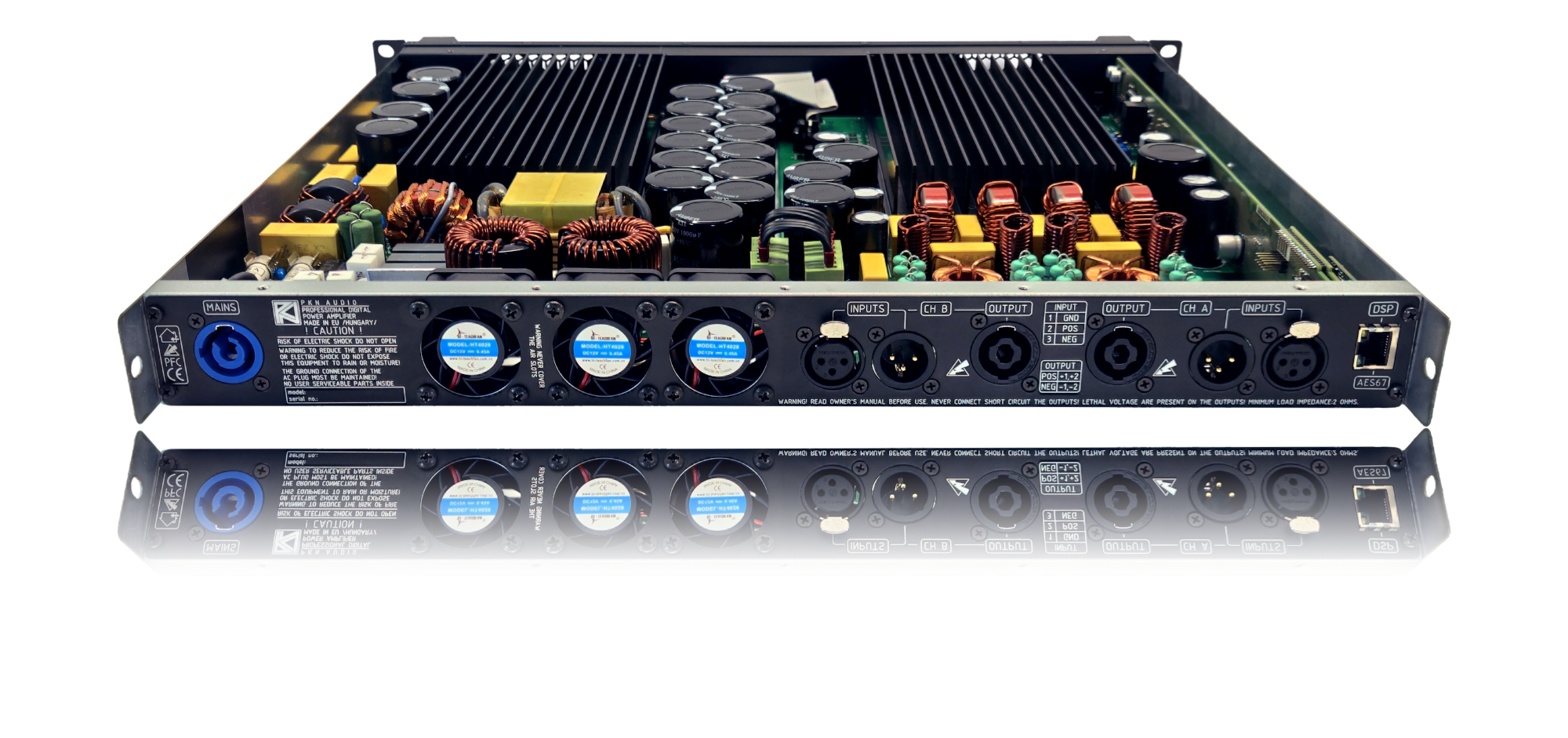

Two stage switching power
  supply (XE / XD Series)

Endstage of XE / XD Series

Video links:
  XE Series Network Settings
  XE Series Limiter Settings
  XE Series Input Sensitivity
  XE Series Thermal limiting
  XE Series Output Current
  XE Series Output Voltage

Products Table


4 Ohms  8 Ohms
XE 2500 DSP
 		2 x 1300 W
 2 x 700 W
XE 4000 DSP
 		2 x 2100 W
 2 x 1300 W
XE 5002 DSP
 2x 1800 W 2 x 980W
XE 6000 DSP
 		2 x 3650 W
 2 x 1900 W
XE 10000 DSP
 2x 5000W 2x 2600W

Technical Specifications

Parameter XE2500DSP XE4000DSP XE5002DSP XE6000DSP XE10000DSP
Power requirements
 160V - 270VAC, (50-60Hz)
Max. Power Consumption 2600W 5500W 5650W 7900W 8000W
Soft starting
 yes
Power Supply
 High frequency resonant includes active PFC
Mains connection
 Neutrik Powercon
Working temperature range
 0 - 40C
Storage temperature range
 -25C - 60C
Output power @ 16 Ohms 2 x 320W
 2 x 680W 2 x 490W 2 x 1000W
 2x 1300W
Output power @ 8 Ohms 2 x 700W
 2 x 1300W 2 x 980W 2 x 1900W 2x 2600W
Output power @ 4 Ohms 2 x 1300W 2 x 2100W 2 x 1800W 2 x 3650W 2x 5000W
Output power @ 2,6 Ohms 2 x 1900W 2 x 2000W 2 x 2600W 2 x 3000W 2x 3200W
Output power @ 2 Ohms 2 x 1500W 2 x 1800W 2 x 3200W 2 x 3500W 2x 3600W
Minimum load impedance
 2 Ohms
Frequency (+/- 3dB, 8 Ohms)
 5 Hz - 22 kHz
Slew rate 50V / us 60V / us 62V /us
Damping factor >400 >500 >550 >600 >700
End Stages High Frequency semi soft switched PWM in balanced configuration
Output connections Four pole Neutrik SPEAKON (1+2+ in parallel, 1-2- in parallel
Signal to Noise ratio A-Weighted 20Hz - 20kHz
 100 dB 102 dB 101dB 107 dB 105dB
Nominal sensitivity for maximum output level (balanced)
 1.4V (rms) 1.7V (rms) 1.5V (rms) 1.7V (rms) 1.9V (rms)
Input Impedance (Refered to ground) 10 KOhms + 10 KOhms (+/- 1%)
Input terminals Neutrik XLR
Built in Limiter Adjustable Advanced Output Limiter (1V / Step), Adjustable Limiter Wizard (Impedance/Wattage) | Separated AD Input Limiter
DSP Features HPF, LPF, PEQ, Delay, Phase Invertion, FIR Filter, Compressor, Limiter, Expander,Noise Gate, Signal Generator, Feedback Suppression, Auto Mixer
DSP Presets Up to 20 Custom User Presets + 1 Factory Default
DSP sample Rate | Bit Depth 48/96kHz | 16/24/32Bit
Digital Audio Stream Compliants AES67 / ST2110-30 / Ravenna
DSP & Digital Audio Latency 1-5ms (Adjustable)
Digital Channels 2 Ch In / 2 Ch Out via Ethernet
Output level meter LEDbar, status LEDs (AGR, Short, Temp, Protect, Ready)
Built-in Limiters (Non-DSP) Output: Adjustable Advanced Limiter (1V / Step), Adjustable Limiter Wizard (Impedance/Wattage)
Visual Status Feedback LEDbar, status LEDs (AGR, Short, Temp, Protect, Ready), Graphics Display
Display Graphics LCD
Control terminals JOGS, Buttons, PKN Audio DSP Control Software
Volume control Set by control JOG wheels or remote -95,5dB - 0dB (in 0,5 dB steps), PKN Audio DSP Control Software
Input sensitivity -95,5db - 0dB (steps 0,5 dB), PKN Audio DSP Control Software
Advanced Limiter settings range 10 - 100V
 10 - 155V
 10 - 126V 10 - 170V
 10 - 200V
User profiles 5 user profile
Protections Input limiter (ADC), Short circuit, Overload,Low impedance,Thermal, DC fault
Cooling Forced air cooling with regulated DC fans
Direction of air flow Front to rear
Remote control 10/100/1000 Mbps Ethernet, PKN Audio DSP Control Software
Weight 8 Kgs
 9 Kgs
 9.1Kgs 9,5 Kgs
 9,6Kgs
External dimensions
 19" rack 483 x 440 x 44mm (1RU)

* For detailed installation and technical support please contact to PKN Audio ( info@pknaudio.com )

Terms & Conditions: Prepayment by electronic transfer, buying from PKN Audio includes 2 years standard warranty. For special offers and extended warranty terms kindly contact us separately.

Prices and technical specifications are subject to change without prior notice.
