PKN H8 Amplifier Technology

  PKN H8 Engine    Download PKN H8 Technology whitepaperWhitepaper (461KB, PDF)

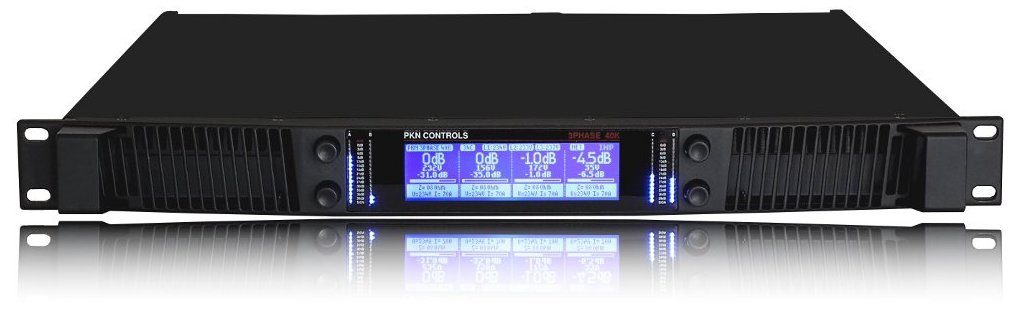

UPDATE1. First H8 model is here!

PKN H8 is coming soon! Worldwide best switching amplifier technology with 1MS/s+ sample rate, exceptional signal accuracy & pulse response in fully
symmetrical configuration at very high power levels by PKN Audio. Stay tuned for updates.

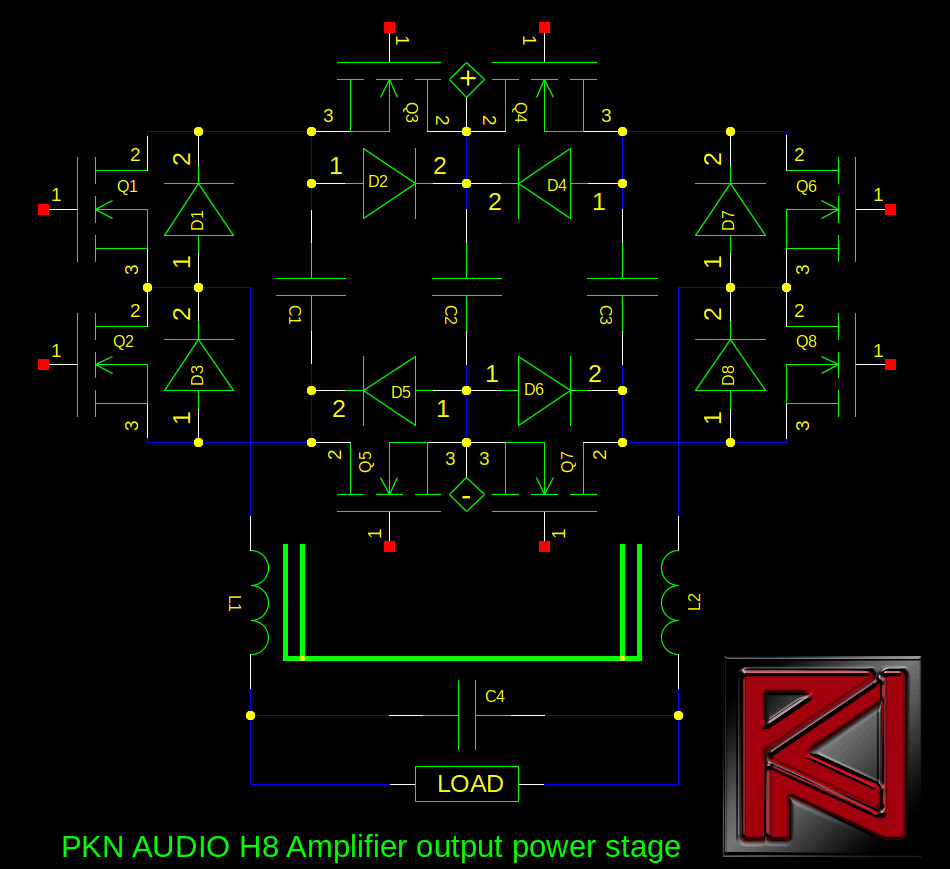

Basic features of PKN H8 technology:

- First affordable multilevel high-power professional audio amplifier brings the advantages of multilevel inverter technology into the proaudio fileld

- Improved reliability due lower, distributed losses over 8 power processing elements instead of 2 (typical for common Class-D amplifiers)

- Exceptional signal accuracy due advanced multilevel & multiphase PKN H8 modulation, fixed frequency operation

- Effective sample rates over 1000KS/s directly from the analog signal input

- True output U/I feedback loop(s) for fully load independent frequency response

- Improved large signal bandwidth and pulse response, at least twice of useful frequency range compared to Class-D

- Power of 8 switching elements added therefore suitable for the upper power range, above 5000W/ch on 4Ω

- NO 'common rail' structure , overload on one channel does not immediately influence the others

- Very high power conversion efficiency, less than 1/4 of the losses compared to conventional Class-D

- Full reactive load and energy recycling capability, Class-D 'bus pumping effect' eliminated, good low frequency response down to DC

- Wider useful bandwidth allows larger loop-Gain of control therefore damping factor over 10000(@50Hz and bellow) becomes possible

- Advanced user programmable NoClip/U/I limiters for each individual channels

- Worldwide operational ability with matching Universal mains PFC power supply
